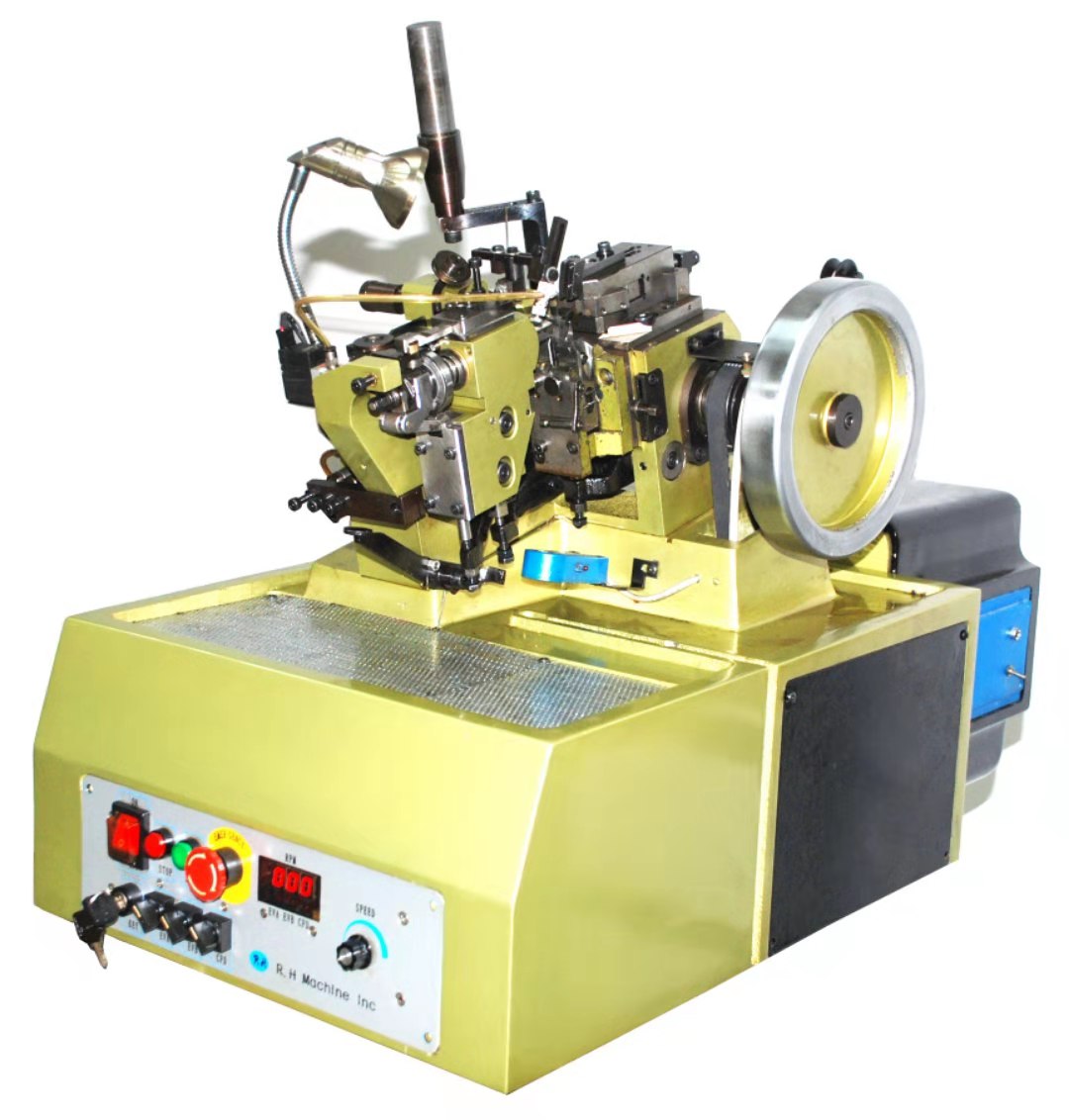

Spiga Chain Making Machine
Product introduction

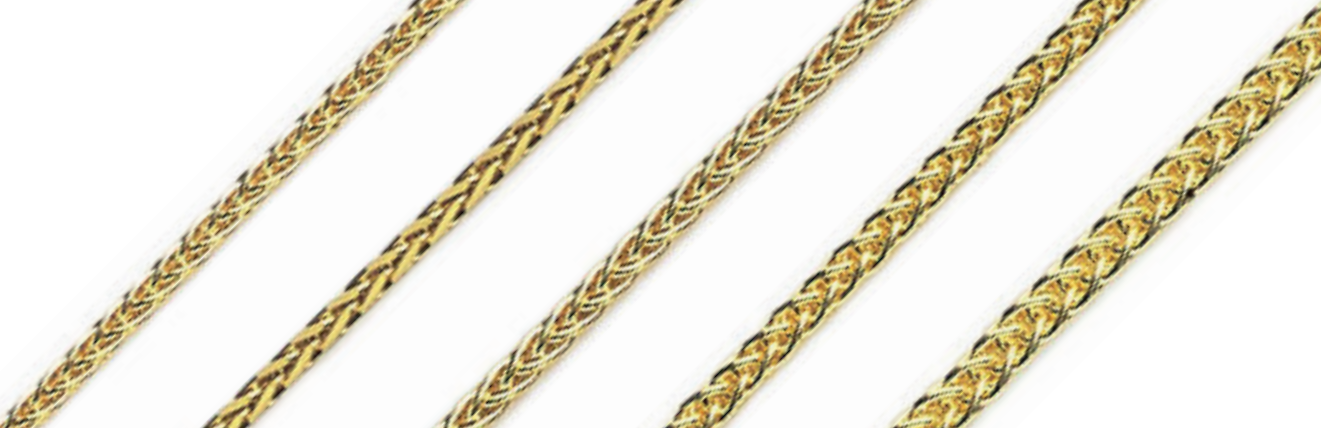

The double Spiga is a chain with a round section allows the finishing in its original forms and the flat or oval beatings. Together with the new proportion, is particularly suitable for a small, round chain without
kinkings, providing smoother, lighter and easier production. The peculiar chain design can be linked together with components on high class jewellery. The endowment of the machine is completed by the chain density sensor, the electronic speed regulator with brake, the cutting unit, adjustable in height, the electronic wire tensioner and the low voltage lamp.
Technical Details
| Wire dimension double | 0.20 - 0.60 mm |
| Wire dimension triple | 0.25 - 0.55 mm |
| Production speed for double | 220 rpm |
| Production speed for triple | 140 rpm |
| Lubrication | Automatic |
| Pneumatic supply | 5/6 bar |
| Air consumption | 25 nl/min |
| Power supply | 220 V 50-60 Hz 1ph |
| Power absorbed | 0.3Kw |
| Dimensions | 420 x 750 x 550 mm |
| Weight | 76 kg |
