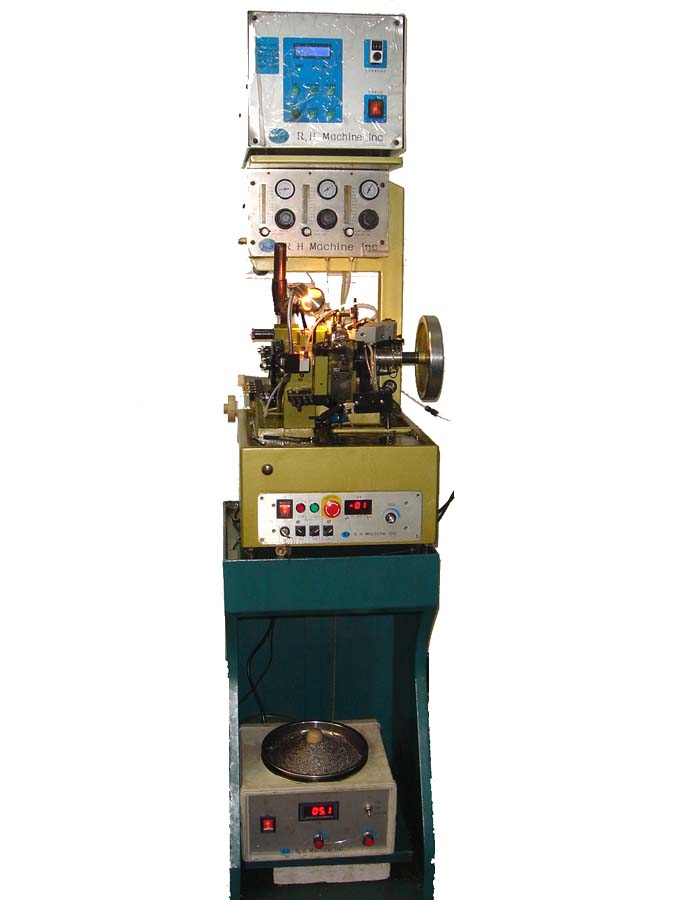

Chain making machine with plasma welding system
Product introduction

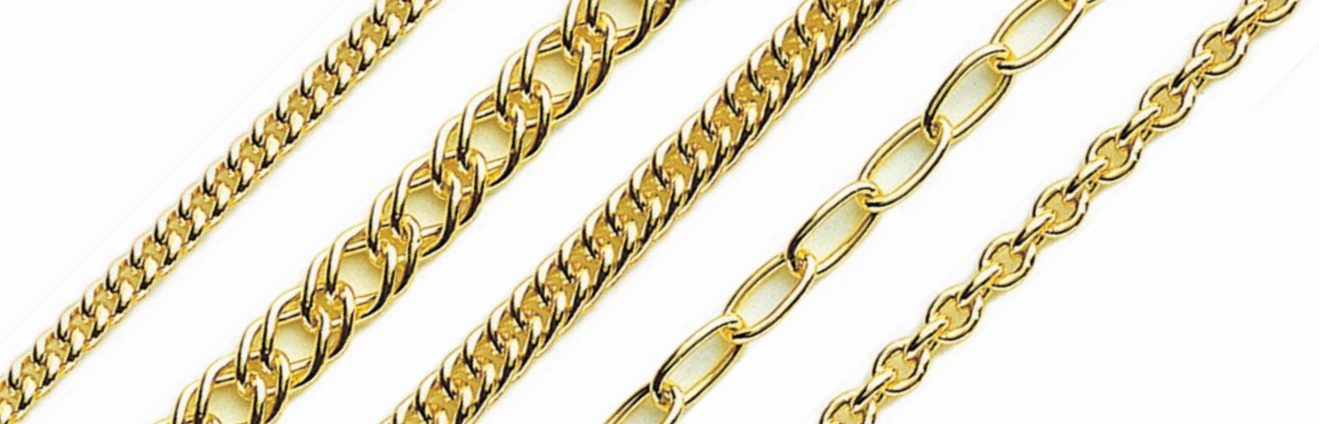

Automatic plasma welding machine for the production of single, double and triple curb,rhombus chain and single, double and triple cable chain. Suitable for different materials including AG,AU24KT and PT.It's cams are movable having various positions for different chain settings for 7 basic chain designs, from Cable, Curb to Corda Chain, with the help from our Chain Hammering Machine(FSCL-B)and Chain Compacting Machine(FSTM-B),the 7 basic chain designs can transform more than 40 different varieties.
Technical Details
| Power Supply | Sigle phase 220V/50Hz |
| Gas Feeding(Argon) | 5Bar |
| Wire Diameter | 0.19 - 0.80 mm |
| Speed Range | 80 - 280 Links per minute |
| Lubrication System | Automatic force feeding lubrication type. |
| Sensor Control | CFD checking for absence of chain fall, density and completion. |
| Excellent for | Gold, Silver,ferrous and non-ferrous wires |
| Dimension | 450mm L×760mm W×1050 mm H |
| Weight | 120 Kg |
